Connect Inputs and Outputs

Top  Previous  Next



Unfold inputs and outputs of all three subsystems (usingLightLikeStaticDemo_InputOutputButtons buttons on subsystem's toolbar) and connect propagation controllers with generalatmosphere as shown below.



Elevate (Right-click > Elevate) inputs of PropagationControllers and outputs of GeneralAtmosphere and rename them into outgoingincident, incomingincident, outgoingtransmitted and incomingtransmitted. (See the Direction Nomenclature for the explanation of incoming/outgoing and incident/transmitted)

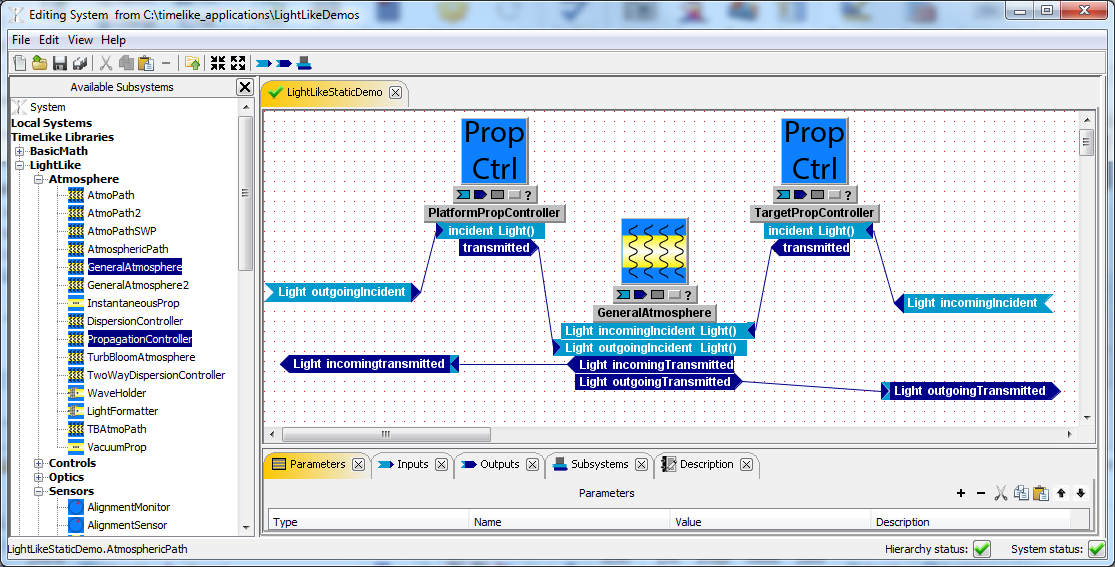

LightLikeStaticDemo_AtmosphericPath



Double-click on white space to navigate up the hierarchy.

Connect subsystems as shown below:

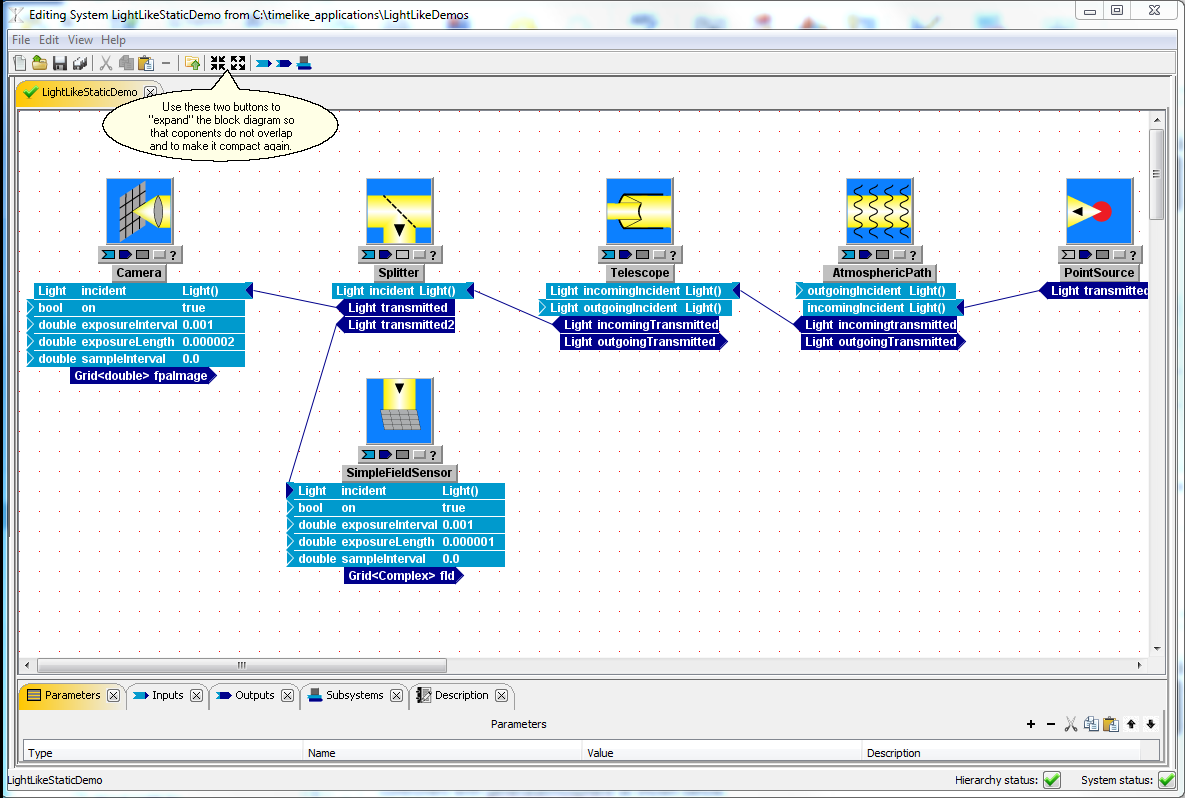

LightLikeStaticDemo_TopSystemConnected

save.
