PolarizingSplitter

Top  Previous  Next

LL_PolarizingSplitter

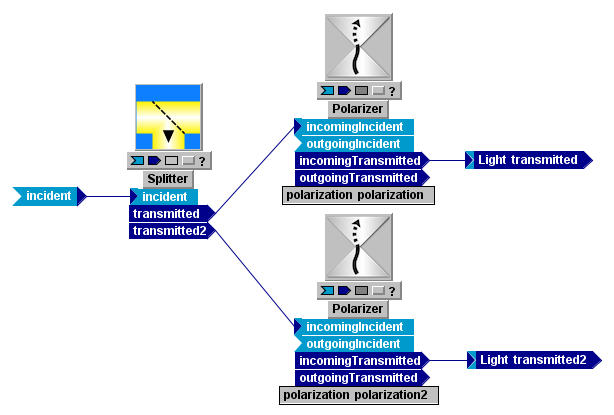

View Inside PolarizingSplitter:

LL_PolarizingSplitter_Inside



PolarizingSplitter splits the incident Light and applies a polarization tag to each path. This System allows Waves from the same source to be split into two sets of Waves which can be manipulated separately.

C++ type

name

value

description

Parameters

int

polarization

1

idealized (nonphysical) polarization state to be applied to transmitted

int

polarization

2

idealized (nonphysical) polarization state to be applied to transmitted2

Inputs

Light

incomingIncident

Light()

Describes all light incident from the "incoming" direction

Light

outgoingIncident

Light()

Describes all light incident from the "outgoing" direction

Outputs

Light

incomingTransmitted


Describes all light transmitted in the "incoming" direction

Light

outgoingTransmitted


Describes all light transmitted in the "outgoing" direction
