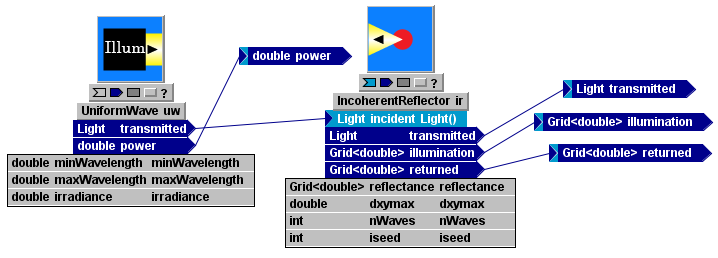

View Inside IncoherentSource: |
|

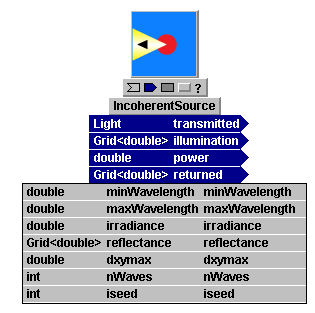

IncoherentSource models an optically rough reflector illuminated by a uniform intensity plane wave. The reflected return is modeled using multiple independent speckle realizations. IncoherentSource is a composite system, containing two subsystems, a UniformWave and a IncoherentReflector. It has a single Light output, representing the transmitted light. See also CoherentSource.
C++ type |
name |
value |
description |
Parameters |
|||
double |
minWavelength |
Minimum wavelength in m |
|
double |
maxWavelength |
Maximum wavelength in m |
|
double |
irradiance |
Irradiance in W/(m^2) |
|
Grid<double> |
reflectance |
reflectance map |
|
double |
dxymax |
maximum allowed mesh spacing for intensity integration |
|
int |
nWaves |
number of speckle realizations |
|
int |
iseed |
random number seed for speckle |
|
Inputs |
|||
none |
|||
Outputs |
|||
Describes all transmitted light |
|||
Grid<double> |
illumination |
|
|
double |
power |
Total power in Watts |
|
Grid<double> |
retuned |
|
|
