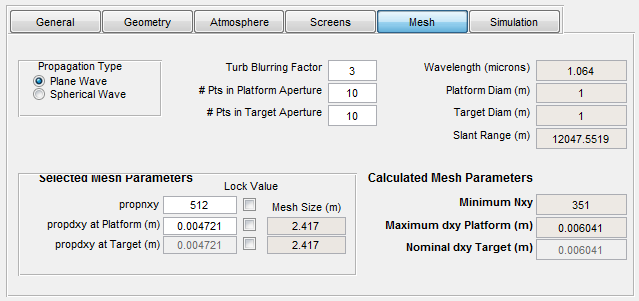

Mesh tab contains calculations for setting propagation mesh parameters for input to a waveoptics model.



Can compute parameters for either plane wave or spherical wave propagation

Computes a minimum grid size and maximum pixel spacing and recommends values to be used

Can modify the turbulence blurring factor or specify minimum number of points in the aperture as needed

For the example, mesh size (propdxy) is limited by the minimum number of points in aperture
