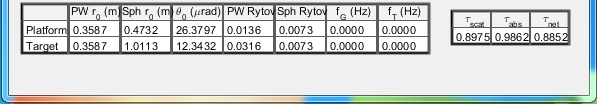

The following values are computed as user changes propagation configuration:




propagation parameters

PW r0  (m)        -  Plane Wave r0 (r0 means Fried coherence diameter in meters)

Sph r0 (m)        -  Spherical Wave

θ0 (μrad)        -  Anisoplanatic angle

PW Rytov        -  Plane Wave Rytov number

Sph Rytov        -  Spherical Wave Rytov number

fG (Hz)        -  Greenwood Frequency

fT (Hz)        -  Tyler Frequency


atmospheric transmission

τscat                -  Transmissivity due to scattering

τabs                -  Transmissivity due to absorption

τnet                -  Net transmissivity
